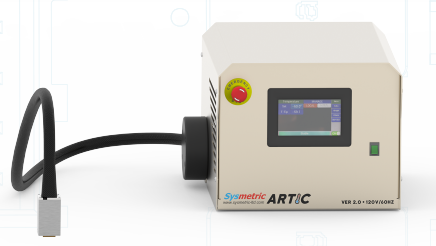

Artic
Mobile Thermal Solution for Validation & Testing Engineers
Advantages:
Compact design, Reliable operation, Fluid free, Quiet operation.
Mobile thermal solution for validation and testing engineers in:
– Semiconductor testing
– Medical devices
– Climate chambers
– Laser system
- No TEC – Thermal Electrical Coolers are not required
- Does not rely on Chiller PCW expensive facility investment
- Only requires standard 220/110 volt 3 Amps outlet
- Total cooling system efficiency of ~ 55%.
- Easy Kit/pedestal change to any package size
- Fluid free, compact design
- Quiet and reliable, very low maintenance operation
Application :
Semiconductor testing ,Compartment cooling ,Laser systems, Medical systems
Features
| Temperature range | -60ºc to 150ºc |
| Cooling power | 25W@-40 ºc, 150W@0ºc |
| Head size | 20×20 mm mm easy kit / pedestal change |
| Temperature change rate | ~(hot/cold): 2ºc per second |
| Condensation prevention | Air Purge & Heaters |
| Thermal safety fuse limit | 150ºc (OTCB) |
| Umbilical hose length Remote | 2.2 meters (between control box & thermal head) |
| Remote communication | I^2C / Modbus TCP/UDP Protocols |
| Refrigeration | R452a – complies with CA state GWP regulation (2020) |
